MTD011732

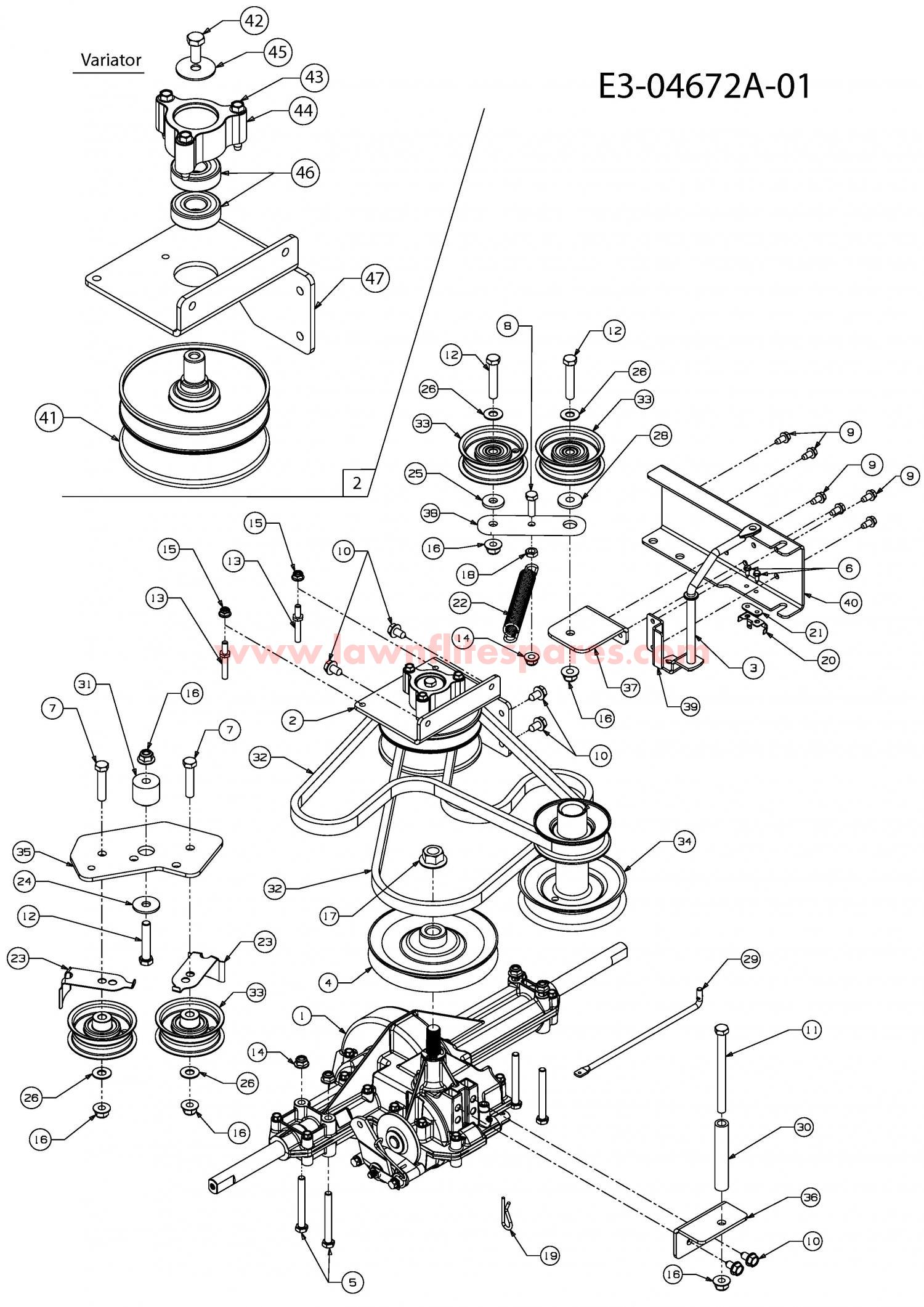

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04728	TRNAX ASM:EURO:MINI	£414.03	Add
002	618-04733	PUL ASM:VAR SPD:W/BRKT	£152.46	Add
003	647-04155	PED ASSM:BRAKE	£31.95	Add
004	656-0002	PULLEY	£54.84	Add
005	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
006	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0376	SCREW HEX CAP 5/16	£9.02	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0604A	SCREW	£3.62	Add
011	710-0693	SCREW-HEX	£18.67	Add
012	710-3144	SCREW	£3.28	Add
013	711-0993	BELT GUARD PIN Ò1/4 x 1.43	£4.50	Add
014	712-04063	FLANGED NUT	£4.20	Add
015	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
016	712-04065	NUT	£4.02	Add
017	712-0700	NUT:FLANGE:9/16-18:GR2	£13.38	Add
018	712-3007	HEX JAM NUT	£3.07	Add
019	714-0209	INTERNAL COTTER PIN .125 DIA	£3.49	Add
020	725-04876	SW:SPR:SPECIAL	£6.72	Add
021	726-0320	INSULATING PLATE	£2.97	Add
022	732-0478	EXT. SPRING DECK CONTROL	£16.63	Add
023	732-1013A	ROD:BELT:KEEPER	£19.68	Add
024	736-0133	WASH:FLAT:.411 X 1.25 X .100	£3.87	Add
025	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
026	736-0300	WASHER	£2.81	Add
028	738-04137	SPCR:SHLDR:.6250 DIA X .190	£5.27	Add
029	747-04999	ROD:SHIFT	£11.22	Add
030	749-04519	TUBE:.400 ID x.625 OD x 3.625	£7.30	Add
031	750-05133	SPCR:SHLDR:.385x.750x.950	£14.06	Add
032	754-04236	BELT:V TYPE:5LX47.2 LG POLY	£49.54	Add
033	756-04224	IDLER PULLEY	£28.15	Add
034	756-04375	PUL:DBL:PTO	£145.27	Add
035	783-06129	BRKT:IDLR:DRIVE	N/A	POA
036	783-06130	BRKT:TRANS:STRAP	N/A	POA
037	783-06138	BRKT:TRANS:STRAP	N/A	POA
038	783-06151	BRKT:IDLR	£7.51	Add
039	783-06226	BRKT:MT:SHFT	N/A	POA
040	783-06323	BRKT:MOUNTING:SHIFTER	N/A	POA
041	656-05011	PULLEY	£81.80	Add
042	710-0627	HEX SCREW	£3.32	Add
043	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
044	718-04261	BEARING HOUSING	£15.33	Add
045	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
046	741-0124A	BALL BEARING	£20.00	Add
047	783-06324	BRKT:MT:VARIATOR	N/A	POA
