FG107_1400

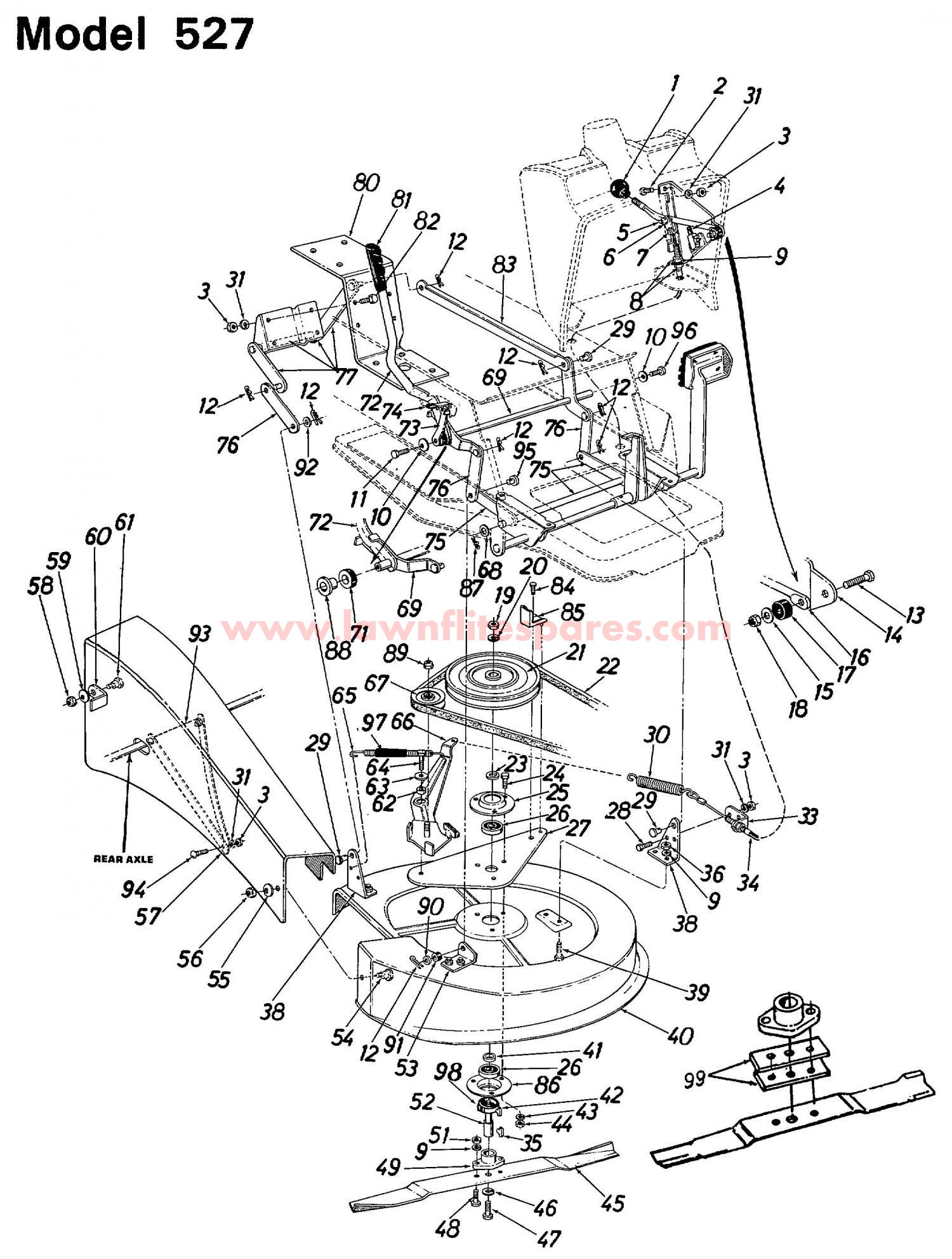

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0--	12550	REELING-HOUSING CPL. 092.15.240	N/A	POA
001	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add
002	710-0286	SCREW	£3.31	Add
003	712-0287	NUT HEX	£3.31	Add
004	725-0465A	SWITCH SAFETY RELEASE 090.65.421	£30.37	Add
005	710-0282	WELD PIN .250 DIA. X .62" LG.	£3.48	Add
006	726-0106	CAP SPEED NUT	£3.33	Add
007	761-0145	CLEVIS	£5.00	Add
008	712-0256	NUT:JAM:5/16-24:GR2	£11.84	Add
009	736-0119	LOCK WASHER 5/16	£3.33	Add
010	736-0219	BELL WASHER (RED)	£3.58	Add
011	710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH	£7.56	Add
012	714-0101	PIN:COT:INT:.08 X 1.42	£3.58	Add
013	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
014	12476A	CLUTCH CONTROL BRKT	£19.12	Add
015	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add
016	747-0157	BLADE CLUTCH LEVER	£12.62	Add
017	735-0165	NO LONGER AVAILABLE	N/A	POA
018	712-0107	NO LONGER AVAILABLE	N/A	POA
019	712-0261	NUT-HEX CENTER L	£16.56	Add
020	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
021	756-0143	NO LONGER AVAILABLE	N/A	POA
022	754-0195A	KEILRIEMEN 1/2"X54" LG. 090.65.403	£33.54	Add
023	748-0198	NO LONGER AVAILABLE	N/A	POA
024	710-0322	HEX SEMS SCR. 5/16-18 X 1.00" LG. *	£7.96	Add
025	8253	BEARING HOUSING	N/A	POA
026	741-0919B	BALL BEARING	£28.69	Add
027	12453	GUARD PLATE	£55.29	Add
028	710-0211	BOLT 090.65.486	£3.24	Add
029	711-0332	CLEVIS PIN (RED)	£13.13	Add
030	732-0180	EXTENSION SPRING	£17.76	Add
031	736-0329	L. WASHER	£3.26	Add
033	12509	DCK CABLE BRACKET	£7.09	Add
034	746-0253	NO LONGER AVAILABLE	N/A	POA
035	714-0365	KI PRO KEY	£5.39	Add
036	712-3010	NUT 5/16 x 18	£2.77	Add
038	12531	DECK BRACKET	£13.53	Add
039	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
040	12455	DECK 26	£419.97	Add
041	750-0142	Spacer 090.47.160	£19.13	Add
042	714-0388	KEY-WOODRUFF NR.61 3/16X5/8"	£12.14	Add
043	736-0119	LOCK WASHER 5/16	£3.33	Add
044	712-3010	NUT 5/16 x 18	£2.77	Add
045	742-0255A	BLADE 26"	£46.87	Add
046	736-0217	H.L. WASHER (RED)	£4.89	Add
047	710-0151	HHCS:3/8-24:2.00:GR5:SPEC	£4.84	Add
048	710-0624	HEX. HEAD SCREW 5/16-24X1.50"	£10.65	Add
049	748-0189	NO LONGER AVAILABLE	N/A	POA
051	712-3057	NUT 5/16-24	£3.00	Add
052	738-0292	NO LONGER AVAILABLE	N/A	POA
053	12532	DECK BRKT	£22.29	Add
054	738-0183	NO LONGER AVAILABLE	N/A	POA
055	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
056	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
057	12464	CHUTE ASSY	£177.37	Add
058	712-0429	NUT HEX.INS L NUT	£4.92	Add
059	736-0242	BELL WASHER	£3.72	Add
060	12541	NO LONGER AVAILABLE	N/A	POA
061	738-0140	SHLD SCREW	£6.03	Add
062	750-0258	SPCR:.315 X .75 X .375LG	£6.91	Add
063	736-0231	WASHER FLAT	£3.58	Add
064	710-0376	SCREW HEX CAP 5/16	£9.02	Add
065	732-0308	EXTENSION SPRING	£10.04	Add
066	12469A	BRACKET ASSY	£86.44	Add
067	756-04213	PULLEY	£19.77	Add
068	736-0116	WASH:FLAT:.635 x.93 x.06	£3.70	Add
069	12472	SHAFT ASSY (DNR)	£103.46	Add
071	735-0180	RUBBER WASHER 090.65.527	£11.25	Add
072	749-0174	NO LONGER AVAILABLE	N/A	POA
073	12479	LIFT HANDLE STOP	£10.34	Add
074	11249	HEIGHT ADJUSTER KNOB (DNR)	£7.85	Add
075	12477	LIFT ARM SHAFT ASSEMBLY	£71.72	Add
076	10317	DECK LINK	£742.43	Add
077	12502	LIFT PIVOT BRACKET ASSY (DNR)	£86.63	Add
080	12853	SEAT SUPPORT ASSEMBLY (DNR)	£74.56	Add
081	720-0233	GRIP:HNDL:DECK LIFT	£7.92	Add
082	710-0597	HEX SEMS SCREW	£2.97	Add
083	12495	CONNECTING LINK	£14.36	Add
084	710-0627	HEX SCREW	£3.32	Add
085	10426	BELT KEEPER ASSEMBLY	£12.26	Add
086	15296A	NO LONGER AVAILABLE	N/A	POA
087	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
088	748-0176	FLANGE BEARING	£8.62	Add
089	712-0116	HEX NUT	£3.96	Add
090	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
091	735-0185	RUBBER WASHER 090.65.537	£4.02	Add
092	736-0192	WASH:FL:.535 X .93 X .090	£3.59	Add
093	12852	NO LONGER AVAILABLE	N/A	POA
094	710-0167	SCR:CRG:1/4-20:.50:	£2.97	Add
095	711-0310	CLEVIS PIN	£13.90	Add
096	710-0413	SCREW 092.15.238	£4.91	Add
097	731-0675	NO LONGER AVAILABLE	N/A	POA
098	13703	BEARING SHIELD	£8.31	Add
099	753-0478	NO LONGER AVAILABLE	N/A	POA
